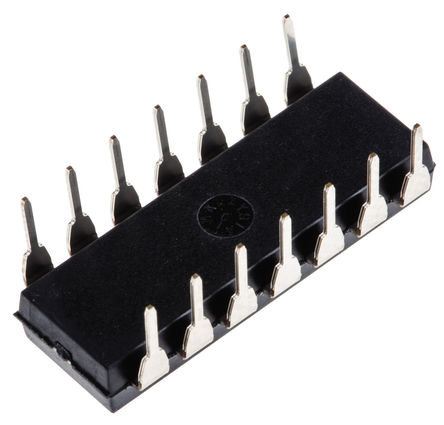

Image is for your reference only,please check specifications for details

OPA4131PA - TI
Manufacturer:
TI
ManyChip's Part#:
MC4213625
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA4131PA Operational Amplifier, Quad, 4 Amplifier, 4MHz, 10V/µs, ± 4.5V to ± 18V, DIP, 14Pins
Stock Locations:
Availability:
14 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The OPA131 series of FET-input op amps provides high performance at low cost. Single, dual, and quad versions in industry-standard pinouts allow cost-effective design options.
The OPA131 series offers excellent general-purpose perfor mance, including low offset voltage, drift, and good dynamic characteristics.
FEATURES
●FET INPUT: IB = 50pA max
●LOW OFFSET VOLTAGE: 750µV max
●WIDE SUPPLY RANGE: ±4.5V to ±18V
●SLEW RATE: 10V/µs
●WIDE BANDWIDTH: 4MHz
●EXCELLENT CAPACITIVE LOAD DRIVE
●SINGLE, DUAL, QUAD VERSIONS

Show

OPA4131PA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Operating Voltage	4.5V ~ 18V
Supply Current	1.5 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Common Mode Rejection Ratio	70 dB
Input Offset Drift	2.00 µV/K
Bandwidth	4 MHz
Slew Rate	10.0 V/μs
Gain Bandwidth Product	4 MHz
Thermal Shutdown	No
Input Offset Voltage	200 µV
Input Bias Current	5 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	4 MHz
Minimum CMRR Range	70 dB
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
