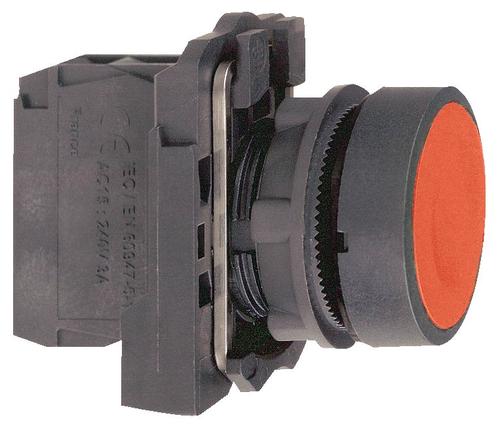

Image is for your reference only,please check specifications for details
- XB5AA42 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC18218275
-
Category:Pushbutton Switch, Switch Push button
-
Datasheet:Datasheet 3D Model
-
Description:Выключатель: кнопочный; 1 положение; NC; 3 А / 240 В переменного тока; 0,55 А / 125 В пост. тока; 22 мм
-
Stock Locations:
-
Availability:21 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 42.47
Updated at 28/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- XB5AA42 — это красная кнопка Harmony™ с одним нормально замкнутым контактом (SPST-NC) и пружинным возвратом. Эта компактная и оптимизированная серия отличается простотой использования и быстрым монтажом. Поскольку она не может быть демонтирована с лицевой стороны, её целостность обеспечивает максимальную безопасность для людей и оборудования.
XB5AA42 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw, Flush, Panel |
| Voltage Rating (DC) | 600 V |
| Voltage Rating (AC) | 600 V |
| Current Rating | 1.2A, 0.1A |
| Contacts Type | SPST-NC |
| Show | |
| Size-Length | 52 mm |
| Size-Width | 30 mm |
| Size-Height | 42 mm |
| Color | Black |
| Material | Plastic |
| Housing Material | Plastic |
| Product Lifecycle Status | 1000000 Cycle(s) |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
