BSS138P - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC23772123
Category:
MOSFET, MOSFET Transistor
Package:
SOT-23
Datasheet:
Datasheet 3D Model
Description:

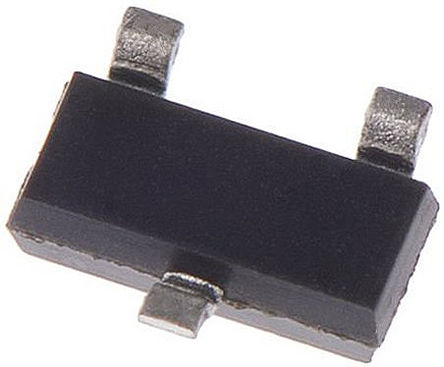

NXP BSS138P MOSFET Transistor, N Channel, 360mA, 60V, 0.9Ω, 10V, 1.2V
Stock Locations:
Availability:
10,119 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.14

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BSS138P is a N-channel enhancement mode Field-Effect Transistor (FET) in a Surface Mounted Device (SMD) plastic package using Trench MOSFET technology.
Very Fast Switching
ESD Protection Upto 1.5kV
Logic Level Compatible
AEC-Q101 Qualified

Show

BSS138P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.9 Ω
Polarity	N-Channel
Power Dissipation	420 mW
Threshold Voltage	1.2 V
Drain to Source Voltage (Vds)	60 V
Input Capacitance (Ciss)	38pF @10V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	0.42 W
	Show
Size-Length	3 mm
Size-Width	1.4 mm
Size-Height	1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
