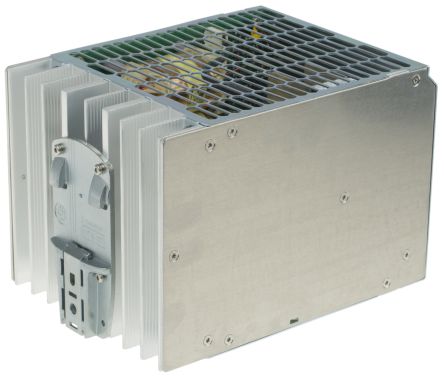

Image is for your reference only,please check specifications for details
- 2866404 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC52980573
-
Category:AC to DC Converter, AC/DC Converter
-
Datasheet:Datasheet 3D Model
-
Description:Power Supply; AC-DC; 24V; 40A; 320-575V In; Enclosed; DIN; Industrial; 960W; TRIO Series
-
Stock Locations:
-
Availability:272 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 694.45
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TRIO Power supply is a general purpose, single phase, DIN-rail mountable power supply which addresses applications requiring 2.5 to 20 amps of 24 VDC power.
- Description:
- The TRIO power supply economically provides exceptional power quality and reliability in an extremely compact form factor.
- The rugged, ultra-narrow, zinc-plated steel housing is a great space saver. From TRIO you get the same exceptional power output regulation you have come to expect from Phoenix Contact range of power suppliers. In addition, the TRIO also features the same high MTBF rating of >500,000 hours in accordance with IEC 61709 and is backed by a five-year, USA warranty.
- The TRIO-PS/1AC/24DC/2.5 provides 2.5 Amps at 24 VDC
- * Narrow, zinc-plated steel housing provides a compact mounting width of only 40 mm
- * >500,000 hours MTBF rating at full nominal load in acc. with IEC 61709 (SN 29500)
- * Wide operating temperature of -25 °C to 70 °C (> 55° C derating)
- * Built in LED diagnostic indication
- * Universal, full spectrum 85 to 264 VAC input range
- * Over-voltage and under voltage compensation
- * Adjustable 22.5 to 29.5 VDC output
- * Built-in load sharing capability for parallel operation and increased output current
- * Built-in cable tie-wrap holder
- * Built-in transient surge protection
- * U/I characteristic overload protection
- * UL 508 listed and CE for worldwide use
- * Three DC grounding terminals
2866404 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 9 Pin |
| Power Rating | 960 W |
| Number of Outputs | 1 Output |
| Output Voltage | 24 V |
| Output Current | 40 A |
| Output Power | 960 W |
| Isolation Voltage | 4 kV |
| Input Voltage (Max) | 575 VAC |
| Input Voltage (Min) | 320 VAC |
| Input Voltage (AC Max) | 575 V |
| Input Voltage (AC Min) | 320 V |
| Output Voltage (Max) | 29.5 VDC |
| Output Voltage (Min) | 22.5 VDC |
| Output Current (Max) | 40 A |
| Input Power (Max) | 960 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Input Voltage | 320VAC ~ 575VAC |
| Show | |
| Size-Length | 7.5 in |
| Size-Width | 139 mm |
| Size-Height | 130 mm |
| Weight | 2.9 kg |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504407018 |
| ECCN Code | EAR99 |
