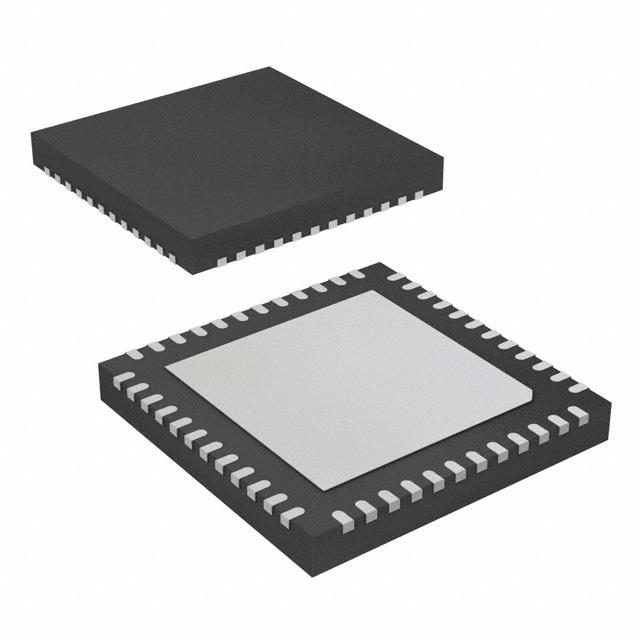

Image is for your reference only,please check specifications for details

DAC3162IRGZT - TI
Manufacturer:
TI
ManyChip's Part#:
MC28654400
Category:
Digital to Analog, DAC IC
Package:
VQFN-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC3162IRGZT Digital to Analog Converter, 12Bit, 500MSPS, Differential, 3V to 3.6V, VQFN, 48Pins
Stock Locations:
Availability:
4,651 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 62.07

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC3152/DAC3162 is a low-power, low-latency, high-dynamic-range, dual-channel, 10-/12-bit, pin-compatible family of digital-to-analog converters (DACs) with a sample rate as high as 500 MSPS.
The device simplicity (no software required), low latency, and low power simplify the design of complex systems. The DACs interface seamlessly with the high-performance TRF370333 analog quadrature modulator for direct upconversion architectures.
Digital data for both DAC channels is interleaved through a single LVDS data bus with on-chip termination. The high input rate of the devices allows the processing of wide-bandwidth signals.
The devices are characterized for operation over the entire industrial temperature range of –40°C to 85°C and are available in a small 48-pin 7-mm × 7-mm QFN package.
The low power, small size, speed, superior crosstalk, simplicity, and low latency of the DAC3152/DAC3162 make them an attractive fit for a variety of applications.

Show

DAC3162IRGZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	VQFN-48
Number of Outputs	2 Output
Supply Current	56.0 mA
Number of Channels	2 Channel
Number of Positions	48 Position
Number of Bits	12 Bit
Sample Rate	500 Msps
Power Consumption	270 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	320 mW
Number of DACs	2 DAC
Supply Voltage	3V ~ 3.6V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
