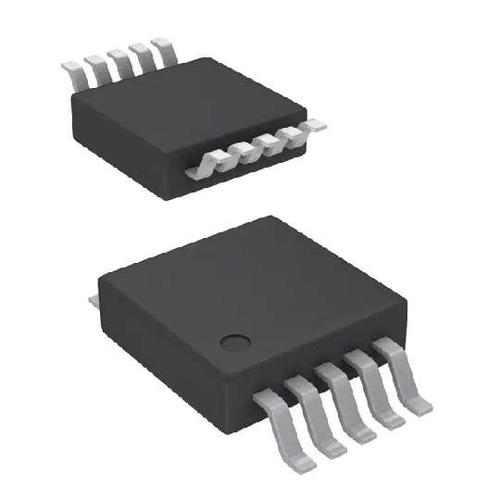

Image is for your reference only,please check specifications for details

AD9833BRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC32309
Category:
Specialty Application IC
Package:
MSOP-10
Datasheet:
Datasheet 3D Model
Description:
* Digitally programmable frequency and phase * 12.65mW power consumption at 3V * 0 MHz to 12.5MHz output frequency range * 28Bit resolution: 0.1Hz at 25MHz reference clock * Sinusoidal, triangular, and square wave outputs * 2.3V to 5.5V power supply * No external components required * 3-wire SPI interface * Extended temperature range:-40℃ to +105℃ * Power-down option * 10-lead MSOP package * Qualified for automotive applications
Stock Locations:
Availability:
3,813 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.11

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9833BRMZ is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. The output frequency and phase are software programmable, allowing easy tuning. The AD9833BRMZ is written via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards.
Digitally programmable frequency and phase
Sinusoidal, triangular, and square wave outputs
No external components required
3-wire SPI interface
Power-down option

Show

AD9833BRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MSOP-10
Supply Voltage (DC)	2.30V (min)
Number of Outputs	1 Output
Output Voltage	0.65 V
Output Current	3 mA
Supply Current	5.50 mA
Number of Channels	1 Channel
Number of Positions	10 Position
Number of Bits	10 Bit
Power Dissipation	27.5 mW
Sample Rate	25.0 MHz
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
Supply Voltage	2.3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
