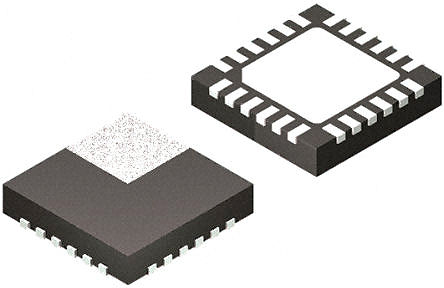

Image is for your reference only,please check specifications for details

BQ24167RGET - TI
Manufacturer:
TI
ManyChip's Part#:
MC40922717
Category:
Battery Management IC
Package:
VQFN-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS BQ24167RGET Battery Charger for 1 Cell of Li-Ion battery, 10V input, 4.2V / 2.5A charge, VQFN-24
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.94

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ24167RGET is a single cell switch-mode Li-ion Battery Charger with power path management. It targeted for space-limited, portable applications with high capacity batteries. The single cell charger has dual inputs which allow operation from either an USB port or higher power input supply (i.e., AC adapter or wireless charging input) for a versatile solution. The two inputs are fully isolated from each other and are managed by the charger with the IN input having precedence. The power path management feature allows the charger to power the system from a high efficiency DC to DC converter while simultaneously and independently charging the battery. The charger monitors the battery current at all times and reduces the charge current when the system load requires current above the input current limit. This allows for proper charge termination and timer operation. The system voltage is regulated to the battery voltage but will not drop below 3.5V.
Dual input charger
0.5% Battery regulation accuracy
10% Charge current accuracy
Easy JEITA implementation
Thermal regulation protection for output current control
Low battery leakage current, BAT short-circuit protection
Soft-start feature to reduce inrush current
Thermal shutdown and protection
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

BQ24167RGET Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	VQFN-24
Input Voltage (DC)	10.0 V
Output Voltage	4.2 V
Output Current	2.5 A
Number of Positions	24 Position
Switching Frequency	1.50 MHz
Output Voltage (Max)	4.24 V
Output Voltage (Min)	4.02 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.2V ~ 18V
Input Voltage	10 V
	Show
Size-Length	4.15 mm
Size-Width	4.15 mm
Size-Height	0.92 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
