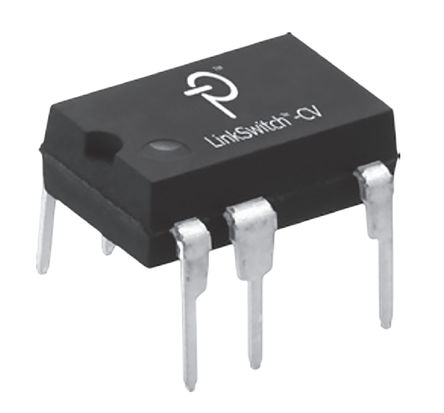

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

LNK626PG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	100 kHz
Power Rating	17 W
Number of Outputs	1 Output
Output Voltage	5 VDC
Output Current	1.08 A
Breakdown Voltage	725 V
Number of Positions	8 Position
Power Dissipation	8.50 W
Switching Frequency	100 kHz
Duty Cycle	54 %
Input Voltage (Max)	265 VAC
Input Voltage (Min)	85 VAC
Input Voltage (AC Max)	265 v
Input Voltage (AC Min)	85 v
Output Voltage (Max)	5 VDC
Output Current (Max)	1.2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	85VAC ~ 265VAC
	Show
Size-Length	9.83 mm
Size-Width	6.6 mm
Size-Height	3.68 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
