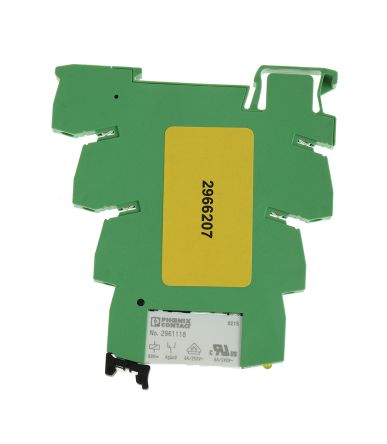

Image is for your reference only,please check specifications for details

2966207 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC49114136
Category:
Power Relay
Datasheet:
Datasheet 3D Model
Description:
Electromechanical Relay 220VDC 230VAC 6A SPDT( (6.2mm 80mm 94mm)) DIN Rail PLC Relay
Stock Locations:
Availability:
103 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.55

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

PLC-RELAY Series: Terminal Block with Plug-in Relay or SSR
The PLC-RELAY is the only pluggable quarter inch terminal block, which accepts either a solid-state relay or an electro-mechanical relay. Using only one part number, you are able to order both the base terminal block and the pluggable relay as a single unit. The PLC-RELAY is also available with switching capacities up to 10 A at 250 VAC.
The PLC-RELAY now also available in both sensor and actuator versions. In these versions you can connect sensors and actuators to the base terminal blocks to eliminate costly wiring and additional output terminal blocks. The preceding variations are only a few of the possibilities that are available. There are now over 100 variations available in different configurations and ratings.
Electromechanical & Solid-State Relay
* Universal — Input or Output Application
* Input Specialist — Designed Specifically for 3 Wire Input Applications
* Output Specialist — Designed Specifically for 2 Wire Output Applications
* High Current / Inrush
Electromechanical Only
* 125 VDC Electro-Mechanical PLC Relays 3
* 5 VDC PLC Relay Base Terminal Block and Plug in Relays

Show

2966207 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw Terminals
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	6 A
Contacts Type	SPDT
Contact Current Rating	6 A
Coil Voltage	230 VAC
Coil Current	3.2 mA
Coil Voltage (AC)	230 V
Current Rating (Max)	6 A
Coil Voltage (DC)	220 V
Input Power (Max)	1.5 KVA
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	230VAC, 220VDC
	Show
Size-Length	80 mm
Size-Width	94 mm
Size-Height	94 mm
Contact Material	Silver Tin Oxide
Operating Temperature	-25℃ ~ 55℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536490050
ECCN Code	EAR99
