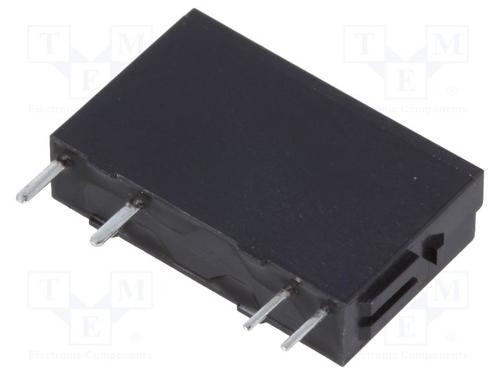

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

APAN3112 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Current Rating	5 A
Insulation Resistance	1000 MΩ
Contacts Type	SPST-NO
Contact Current Rating	5 A
Coil Voltage	12 VDC
Coil Current	9.2 mA
Coil Resistance	1.309 kΩ
Current Rating (Max)	5 A
Coil Voltage (DC)	12 V
Coil Power	110 mW
Switching Current (Max)	5 A
Operating Temperature (Max)	90 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	30 VDC
Voltage Rating (DC Max)	110 V
Voltage Rating (AC Max)	250 V
Maximum Contact Resistance (Max)	30 mΩ
	Show
Size-Length	20 mm
Size-Width	5 mm
Size-Height	12.5 mm
Contact Material	Silver Nickel, Gold
Operating Temperature	-40℃ ~ 90℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
