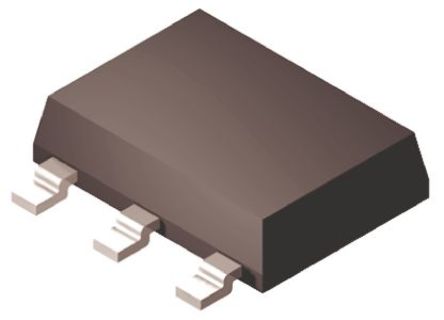

Image is for your reference only,please check specifications for details
- NCP1052ST136T3G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC34347736
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:SOT-223-4
-
Datasheet:Datasheet 3D Model
-
Description:Monolithic High Voltage Gated Oscillator Power Switching Regulator 4Pin(3+Tab) SOT-223 T/R
-
Stock Locations:
-
Availability:235 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.57
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Convert the voltage coming from an outlet to an usable condition with this NCP1052ST136T3G AC to DC converter from ON Semiconductor.
NCP1052ST136T3G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOT-223-4 |
| Power Rating | 40 W |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Breakdown Voltage | 700 V |
| Number of Positions | 4 Position |
| Switching Frequency | 136 kHz |
| Duty Cycle | 77 % |
| Input Voltage (Max) | 10 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 7.5V ~ 9V |
| Show | |
| Size-Length | 6.7 mm |
| Size-Width | 3.7 mm |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
