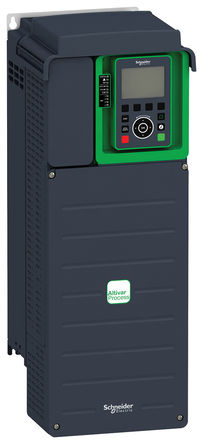

Image is for your reference only,please check specifications for details

ATV630D15N4 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC312327221
Category:
Motors, Drive
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC ATV630D15N4 Variable Speed Drive, Altivar Process 630 Series, Embedded, Three Phase, 15kW, 380 to 480VAC New
Stock Locations:
Availability:
321 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2576.72

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

** Schneider Electric Altivar ATV 600 Series – Altivar Process 600 Variable Speed Drives:**
The Altivar Process 600 series of variable speed drives are designed for the control of three-phase asynchronous and synchronous motors in pump, fan and other normal duty applications requiring 110% overload rating and heavy duty applications requiring 150% overload rating. The user has access to embedded intelligent services such as the Dynamic QR codes providing instant information about the product and troubleshooting assistance, as well as the built-in Ethernet and web server to improve plant integration and remote access.
The Altivar Process 600 series has over 30 functions dedicated to pumping applications as well as functions for fan applications. In addition to pump and fan applications, the Altivar Process 600 series can also be applied on augers, compressors, conveyers, mixers and positive displacement pumps that do not require continuous operation below 5 Hz. Some of these applications may use a normal duty rated Altivar Process 600 series drive if they require up to 130% transient torque for up to 2 seconds, and up to 110% overload for up to 60 seconds.
For applications that require up to 170% transient torque for up to 2 seconds and up to 150% overload for 60 seconds, select the Altivar Process 600 series drive by using the heavy duty ratings. The Altivar Process variable speed drive includes an LCD Graphic display keypad with an easy-to-read display and capacitive navigation wheel that allows users to scroll through easy to read drop-down menus. Error codes can be signaled with red backlighting to annunciate a process error.
**Features:**
* Green Premium rating
* 70% recyclable content
* RoHS and REACH compliant
* Conformal coated to resist chemical pollution
* Conformal coated to resist air borne pollution
* TUV, CSA
* 50 degree C rating
* Integrated Impedance
* UL508C, UL50, IEC 61800-5
* Safe torque off inputs, SIL3/PLE
* Normal duty & heavy duty ratings
**Applications:**
* Water Intake: surface pumps – borehole pumps
* Treatment: aeration blowers – disinfection dosing pumps – ventilation fans
* Storage & Transportation: distribution pumps – pressure booster pumps
* Lift Station: submersible pumps
* Plant Influent: submersible pumps – screw pumps
* Treatment: aeration blowers – sludge conveying – gas compression – dosing pumps – odor ventilation
* Extraction: submersible pumps – liquid injection pumps
* Treatment: liquid treatment pumps – refinery pumps – ventilation fans
* Storage: distribution pumps – pressure booster pumps
* Transport: pipeline booster pump – compressors
* Extraction: ventilation fans – de-watering pumps – mine shaft pumps
* Treatment: filtration pumps – refinery pumps – cooling fans – induced draft fans – mixers – exhaust fans
* Material receiving: ventilation fans – simple conveying
* Processing: mixing pumps – boiler pumps – condensate pumps – solids handling – ventilation fans – liquid pumps – cooling tower fan – dryer fans
* Transport: pipeline booster pumps – compressors
width="560" height="315" src="https://www.youtube.com/embed/doe5nR3F0kk?rel=0" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen

Show

ATV630D15N4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Power Rating	15 kW
Output Voltage (Max)	480 VAC
Supply Voltage	400 V
Supply Voltage (Max)	480 VAC
Supply Voltage (Min)	380 VAC
	Show
Size-Length	211 mm
Size-Width	546 mm
RoHS	RoHS Compliant
