Description

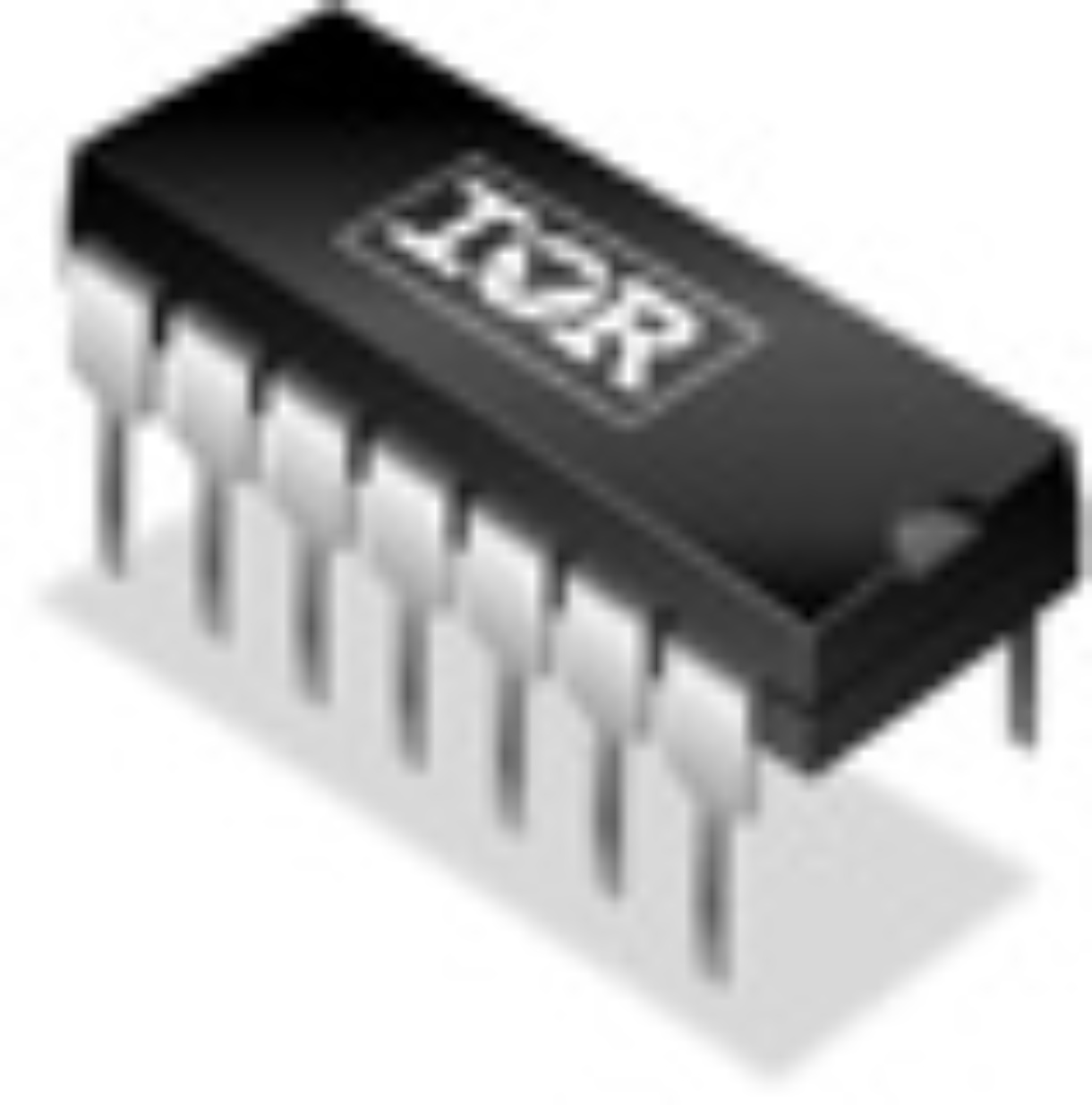

The IR2110PBF is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.
Under voltage lockout for both channels
3.3V logic compatible
CMOS Schmitt-triggered inputs with pull-down
Cycle by cycle edge-triggered shutdown logic
Matched propagation delay for both channels
Outputs in phase with inputs

Show

IR2110PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Voltage (DC)	10.0V (min)
Operating Voltage	10V ~ 20V
Power Rating	1.6 W
Rise/Fall Time	25ns, 17ns
Number of Outputs	2 Output
Output Voltage	500 V
Output Current	2.5 A
Number of Channels	2 Channel
Number of Positions	14 Position
Power Dissipation	1600 mW
Quiescent Current	180 µA
Rise Time	25 ns
Fall Time	17 ns
Fall Time (Max)	25 ns
Fall Time (Max)	35 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1600 mW
Supply Voltage	3.3V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	Show
Size-Length	20.19 mm
Size-Width	7.11 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
