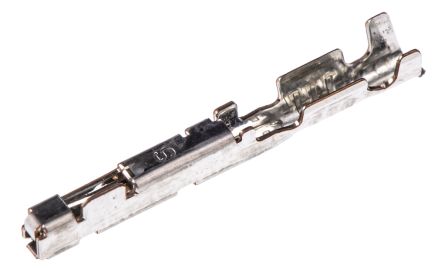

Image is for your reference only,please check specifications for details

Updated at 23/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

M34S75C4F1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	-
Gender	Female
Wire Gauge	22AWG ~ 24AWG
Contact Plating	Tin
Current Rating	3.00 A
Number of Rows	01 Row
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	5 mΩ
	Show
Size-Length	17.75 mm
Size-Width	2.6 mm
Size-Height	2.6 mm
Contact Material	Copper
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR
