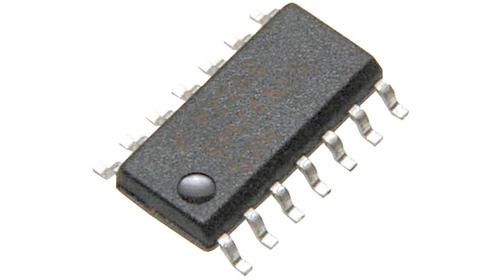

Image is for your reference only,please check specifications for details

TS914AIDT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC11640800
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
TS914 Series 16V 1.4MHz Rail to Rail CMOS Quad Operational Amplifier - SOIC-14
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS914 device is a rail-to-rail CMOS quad operational amplifier designed to operate with a single or dual supply voltage.
The input voltage range Vicmincludes the two supply rails VCC+and VCC-.
The output reaches VCC\- +50 mV, VCC+-50 mV, with RL= 10 kΩ, and VCC\- +350 mV, VCC+-350 mV, with RL= 600 Ω.
This product offers a broad supply voltage operating range from 2.7 to 16 V and a supply current of only 200 μA/amp (VCC= 3 V).
The source and sink output current capability is typically 40 mA (at VCC= 3 V), fixed by an internal limitation circuit.
**Key Features**
Rail-to-rail input and output voltage ranges
Single (or dual) supply operation from 2.7 to 16 V
Extremely low input bias current: 1 pA typical
Low input offset voltage: 5 mV max. (A grade)
Specified for 600 Ω and 100 Ω loads
Low supply current: 200 μA/ampli. (VCC = 3 V)
Latch-up immunity
Spice macromodel included in this specification
Related products
See TS56x series for better accuracy and smaller packages
