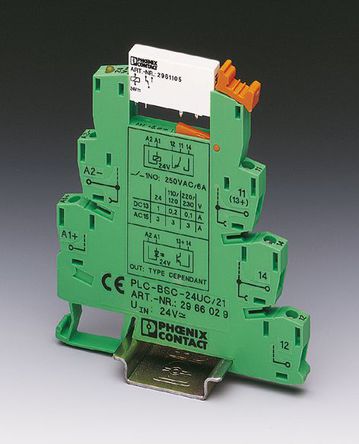

Image is for your reference only,please check specifications for details
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PLC Basic Terminal Block, LED Status Display
- * 80 mm length
- 100% operating factor operating mode.
2966016 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 5 Pin |
| Voltage Rating (DC) | 250 V |
| Number of Positions | 5 Position |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 24 VDC |
| Voltage Rating | 24 VDC |
| Operating Voltage (Max) | 24 VDC |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 6.2 mm |
| Size-Height | 94 mm |
| Housing Color | Green |
| Operating Temperature | -25℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
