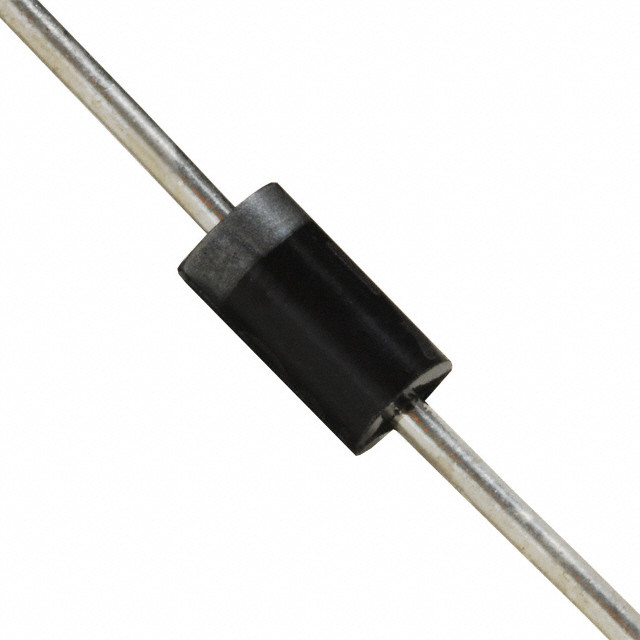

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1N4736A is a Zener Diode for general use and also suitable for many different applications. Color band denotes the cathode end polarity.
37mA Test current
10µA at 4V Maximum reverse leakage current

Show

1N4736A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-41-2
Voltage Rating (DC)	6.80 V
Capacitance Tolerance	±5 %
Power Rating	1.00 W
Output Current	≤680 mA
Breakdown Voltage	6.80 V
Number of Positions	2 Position
Power Dissipation	1 W
Test Current	37 mA
Zener Voltage	6.8 V
Input Power (Max)	1 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	5.21 mm
Size-Width	2.72 mm
Size-Height	2.72 mm
Material	Glass
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
