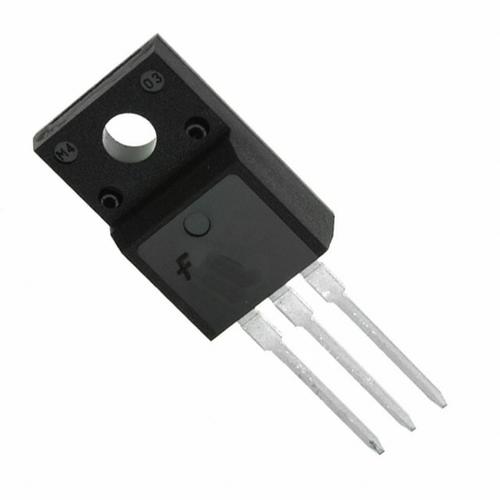

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FQPF8N60C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	600 V
Current Rating	7.50 A
Drain to Source Resistance (on) (Rds)	1.20 Ω
Polarity	N-Channel
Power Dissipation	48 W
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	7.50 A
Rise Time	60.5 ns
Input Capacitance (Ciss)	1255pF @25V(Vds)
Input Power (Max)	48 W
Fall Time	64.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	48W (Tc)
	Show
Size-Length	10.16 mm
Size-Width	4.7 mm
Size-Height	9.19 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
HK STC License	NLR
