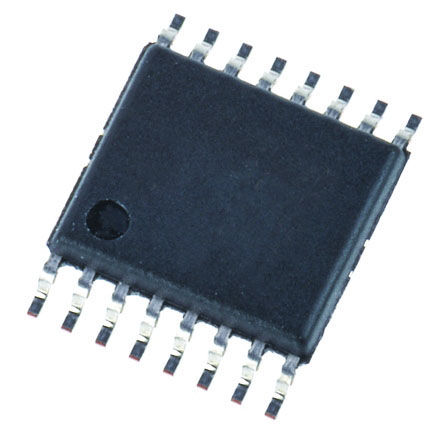

TPS54356PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC39011880
Category:
DC to DC Converter
Package:
HTSSOP-16
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator 4.5V to 20, 3A Synchronous Step Down SWIFT Converter 3.3Vout Conv DC-DC 4.5V to 20V Step Down Single-Out 3.3V 3A 16Pin HTSSOP EP Tube
Stock Locations:
Availability:
61 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.56

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS54356PWP is a SWIFT™ step-down PWM synchronous buck Converter with an integrated high side MOSFET and a gate driver for an optional low side external MOSFET. Features include a high performance voltage error amplifier that enables maximum performance under transient conditions. The TPS5435x has an under-voltage-lockout circuit to prevent start-up until the input voltage reaches a preset value, an internal slow-start circuit to limit in-rush currents and a power good output to indicate valid output conditions. The synchronization feature is configurable as either an input or an output for easy 180° out of phase synchronization. The undervoltage lockout (UVLO) system has an internal voltage divider from VIN to AGND. The defaults for the start/stop values are labelled VIN. The internal UVLO threshold can be overridden by placing an external resistor divider from VIN to ground.
Internally compensated for low parts count
Synchronizes to external clock
Internal slow-start
Load protected by peak current limit and thermal shutdown
Adjustable undervoltage lockout
Green product and no Sb/Br

Show

TPS54356PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Frequency	700 kHz
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	3 A
Number of Positions	16 Position
Quiescent Current	9.00 mA
Number of Regulated Outputs	1 Output
Switching Frequency	250kHz, 500kHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	20 V
Input Voltage (Min)	4.5 V
Output Voltage (Min)	3.3 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Input Voltage	4.5V ~ 20V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
