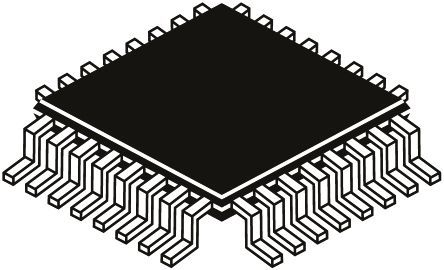

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM8S005K6T6C is a 8-bit value line Microcontroller Unit offers 32kB flash program memory and plus 128 bytes of data EEPROM. This device provides the following benefits of performance, robustness and short development cycles. The device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-art technology at 16MHz clock frequency, independent watchdogs with separate clock source and a clock security system.
Communications interfaces - SPI interface up to 8Mbit/s
UART with clock output for synchronous operation, SmartCard, IrDA, LIN
Highly robust I/O design, immune against current injection
Interrupt management - Up to 37 external interrupts on 6 vectors
Nested interrupt controller with 32 interrupts
Embedded single-wire interface module for fast on-chip programming and non-intrusive debugging
Auto wakeup timer
ESD sensitive device, take proper precaution while handling the device.

Show

STM8S005K6T6C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LQFP-32
Frequency	16 MHz
Supply Voltage (DC)	2.95V (min)
Operating Voltage	2.95V ~ 5.5V
Number of Positions	32 Position
Clock Speed	16.0 MHz
RAM Memory Size	2 KB
Number of Bits	8 Bit
Power Dissipation	360 mW
FLASH Memory Size	32 KB
Number of ADCs	1 ADC
Number of Inputs and Outputs	25 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	360 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.95 V
	Show
Size-Length	7.2 mm
Size-Width	7.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
