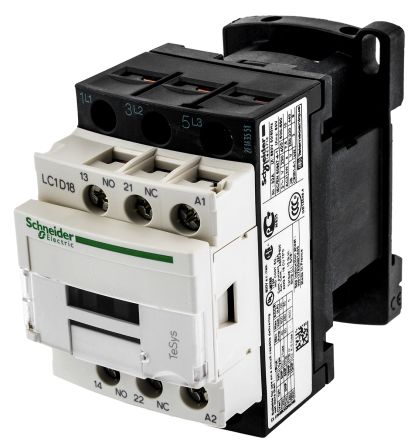

Image is for your reference only,please check specifications for details

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LC1D18P7 from Schneider Electric is a TeSys D three pole contactor with normally open (NO) contacts. It is approved by UL 508, CSA C22.2, CCC, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1 and IEC 60947-5-1 standards. TeSys D contactors are designed for perfect integration in control systems. They can be used in switching equipments or relay coils, powering control equipments, powering signalling equipments and creating motor starters for any type of application.
AC-1 and AC-3 utilisation category
Rated operational voltage of 690VAC at 25Hz to 400Hz and 300VDC for power circuit
Rated operational current of 32A at <= 440VAC (AC-1) and 18A at <= 440VAC (AC-3 ) for power circuit
Motor power of 9KW at 415VAC to 440VAC, 50Hz/60Hz
Control circuit voltage of 230VAC at 50Hz/60Hz
UL94 V-1 flammability
Ambient operating temperature range from -5°C to 60°C
IP2x front face degree of protection conforming to IEC 60529 standard
Power dissipation per pole is 2.5W (AC-1) and 0.8W (AC-3)
Rated breaking capacity of 300A at 440V for power circuit conforming to IEC 60947 standard

Show

LC1D18P7 Specifications
