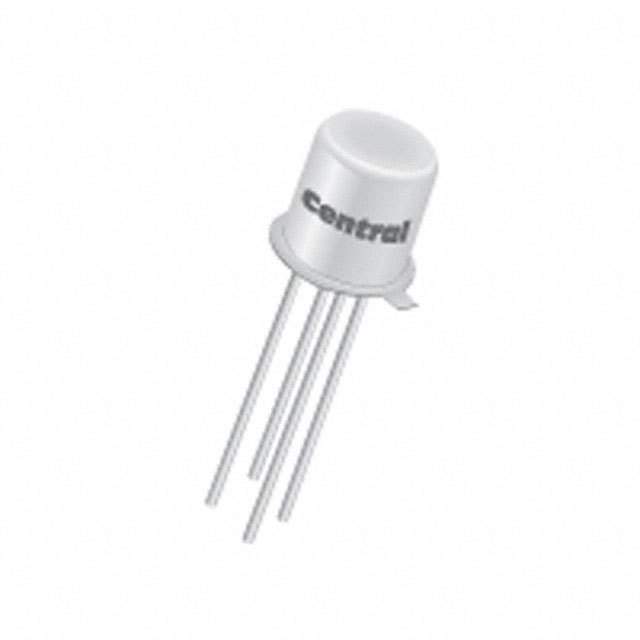

Image is for your reference only,please check specifications for details

BFY90 - Central Semiconductor
Manufacturer:
Central Semiconductor
ManyChip's Part#:
MC101686327
Category:
BJT Transistor, BJT
Package:
TO-206
Datasheet:
Datasheet 3D Model
Description:
RF Small Signal Bipolar Transistor, 0.025A I(C), 1Element, Ultra High Frequency Band, Silicon, NPN, TO-72, TO-72, 4Pin
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

BFY90 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	TO-206
Breakdown Voltage (Collector to Emitter)	15 V
Gain	23 dB
hFE Min	20 @25mA, 1V
Input Power (Max)	200 mW
Power Dissipation (Max)	200 mW
	Show
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
