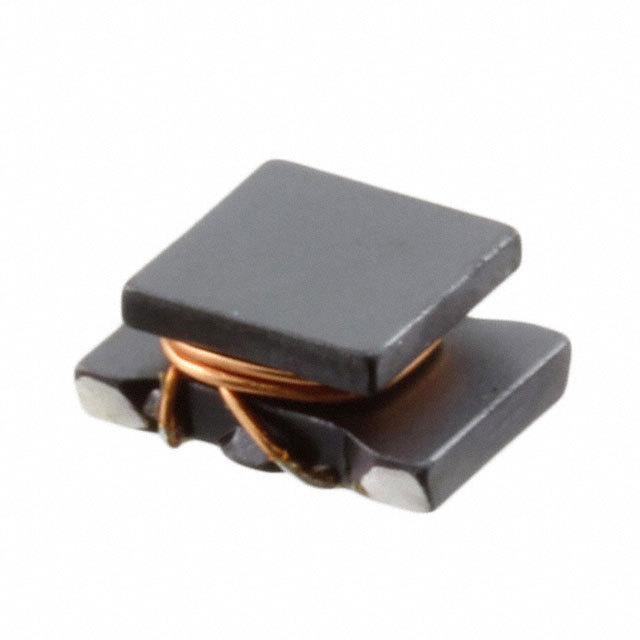

Image is for your reference only,please check specifications for details
- DLW5ATN272SQ2L - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC43123031
-
Category:Inductor Choke
-
Package:2014
-
Datasheet:Datasheet 3D Model
-
Description:2.7KΩ @ 100MHz Common Mode Choke Surface Mount Power, Signal Line 1A 2 Lines 120mOhm -40℃ ~ 85℃
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.57
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2 Line Common Mode Choke Surface Mount 2.7 kOhms @ 100MHz 1A DCR 120mOhm
DLW5ATN272SQ2L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 2014 |
| Voltage Rating (DC) | 50 V |
| Resistance | 2.70 kΩ |
| Impedance | 2.70 kΩ |
| Test Frequency | 100 MHz |
| Current Rating (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 50 VDC |
| Resistance (DC Max) | 120 mΩ |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 3.6 mm |
| Size-Height | 2.2 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
