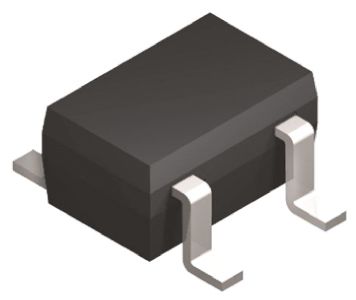

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN74LVC1G04DCKR is a Single Inverter Gate performs the Boolean function Y = A. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. It features IOFF supports live-insertion, partial-power-down mode and back-drive protection.
- Latch-up performance exceeds 100mA per JESD 78, class-II
- Green product and no Sb/Br
SN74LVC1G04DCKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SC-70-5 |
| Supply Voltage (DC) | 5.00 V |
| Output Current | 32 mA |
| Number of Circuits | 1 Circuit |
| Number of Positions | 5 Position |
| Number of Bits | 1 Bit |
| Propagation Delay Max (tpd) | 3.70 ns |
| Number of Gates | 1 Gate |
| Output Current Drive | -1.00 mA |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.65V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 2.15 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2018/01/15 |
| ECCN Code | EAR99 |
