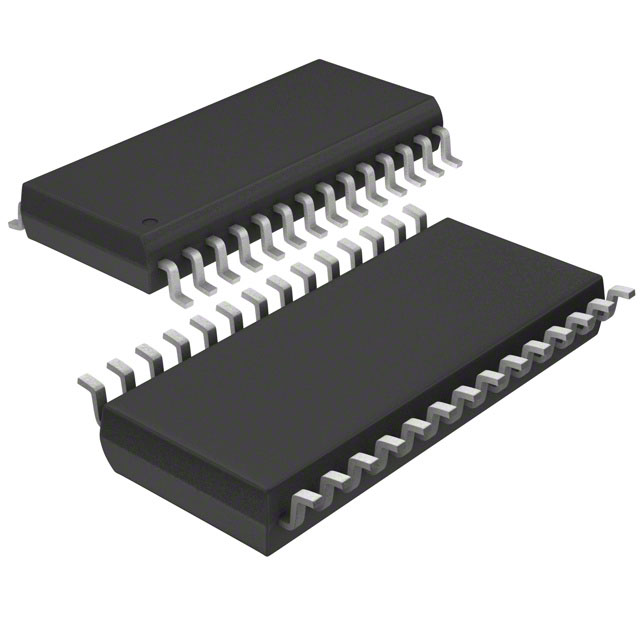

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PCM3060 is a low-cost, high-performance, single-chip, 24-bit stereo audio codec with single-ended analog inputs and differential analog outputs.
- The stereo 24-bit ADC employs a 64-times delta-sigma modulator. It supports 16-96 kHz sampling rates and a 16/24-bit digital audio output word on the audio interface.
- The stereo 24-bit DAC employs a 64- or 128-times delta-sigma modulator. It supports 16-192 kHz sampling rates and a 16/24-bit digital audio input word on the audio interface.
- The PCM3060 supports fully independent operation of the sampling rate and audio interface for the ADC and DAC.
- Each audio interface supports I2S, left-justified, and right-justified formats with 16/24-bit words.
- The PCM3060 can be software-controlled through a 3-wire SPI-compatible or 2-wire I2C-compatible serial interface, which provides access to all functions including digital attenuation, soft mute, de-emphasis etc.
- The PCM3060 can be also used in hardware mode, which provides three basic functions.
- The PCM3060 is fabricated using a highly advanced CMOS process and is available in a small 28-pin TSSOP package.
- The PCM3060 is suitable for various sound processing applications for DVD-RW, digital TV, STB, and other AV equipment.
- 24-Bit Delta-Sigma ADC and DAC
- ADC, DAC Asynchronous Operation
- Stereo ADC:
- High Performance: (Typical, 48 kHz)
- THD+N: -93 dB
- SNR: 99 dB
- Dynamic Range: 99 dB
- Sampling Rate: 16-96 kHz
- System Clock: 256, 384, 512, 768 fS
- Full Scale Input: 3 Vp-p
- Antialiasing Filter Included
- 1/64 Decimation Filter:
- Pass-Band Ripple: ±0.05 dB
- Stop-Band Attenuation: -65 dB
- On-Chip High-Pass Filter: 0.91 Hz at fS = 48 kHz
- Stereo DAC:
- High Performance: (Typical, Differential, 48 kHz)
- THD+N: -94 dB
- SNR: 105 dB
- Dynamic Range: 104 dB
- Sampling Rate: 16-192 kHz
- System Clock: 128, 192, 256, 384, 512, 768 fS
- Differential Voltage Output: 8 Vp-p
- Single-Ended Voltage Output: 4 Vp-p
- Analog Low-Pass Filter Included
- 4×/8× Oversampling Digital Filter:
- Pass-Band Ripple: ±0.04 dB
- Stop-Band Attenuation: -50 dB
- Zero Flags
- Flexible Mode Control
- 3-Wire SPI, 2-Wire I2C Compatible Serial Control Interface
- Hardware Control Mode
- Multiple Functions via SPI or I2C Interface:
- Digital Attenuation and Soft Mute for ADC and DAC
- Digital De-Emphasis: 32, 44.1, 48 kHz for DAC
- Power Down: ADC/DAC Independently
- Asynchronous/Synchronous Control for ADC/DAC Operation
- External Reset and Power-Down Pin:
- ADC/DAC Simultaneously
- Audio Interface Mode:
- ADC/DAC Independent Master/Slave
- Audio Data Format:
- ADC/DAC Independent
- I2S, Left-Justified, Right-Justified
- Dual Power Supplies:
- 5-V for Analog and 3.3-V for Digital
- Package: TSSOP-28
- APPLICATIONS
- DVD-RW
- Digital TV
- Digital Set-Top Box
- Audio-Visual Applications
PCM3060 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | TSSOP-28 |
| Show | |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
