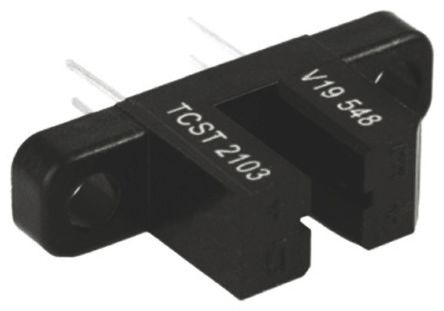

Image is for your reference only,please check specifications for details

TCST2103 - VISHAY
Manufacturer:
VISHAY
ManyChip's Part#:
MC1913665
Category:
Optical Sensor
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Transmissive Photo Interrupter, Phototransistor, 60mA, 1.25V, 6V, 1mm, 3.1mm
Stock Locations:
Availability:
9,932 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.82

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TCST2103 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Lead-4
Voltage Rating (DC)	1.25 V
Output Voltage	70.0 V
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.25 V
Wavelength	950 nm
Input Current	60.0 mA
Peak Wavelength	950 nm
Power Dissipation	0.25 W
Rise Time	10 µs
Output Power	100 mW
Breakdown Voltage (Collector to Emitter)	70 V
Forward Current	60 mA
Reverse Breakdown Voltage	6 V
Forward Current (Max)	60 mA
Fall Time	8 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	24.5 mm
Size-Width	6.3 mm
Size-Height	11.1 mm
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
