Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

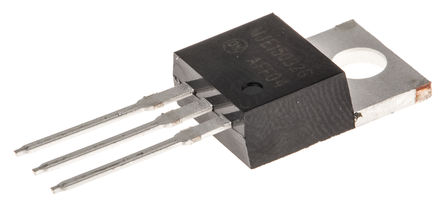

Case/Package | TO-220-3 |
Frequency | 30 MHz |
Voltage Rating (DC) | 250 V |
Current Rating | 8.00 A |
Number of Positions | 3 Position |
Polarity | NPN |
Power Dissipation | 50 W |
Breakdown Voltage (Collector to Emitter) | 250 V |
Thermal Resistance | 2.5℃/W (RθJC) |
Continuous Collector Current | 8A |
hFE Min | 10 @2A, 5V |
Input Power (Max) | 2 W |
DC Current Gain (hFE) | 70 |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -65 ℃ |
Power Dissipation (Max) | 2000 mW |
Show | |
Size-Length | 10.28 mm |
Size-Width | 4.83 mm |
Size-Height | 9.28 mm |
Material | Silicon |
Operating Temperature | -65℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2016/06/20 |
ECCN Code | EAR99 |
