Description

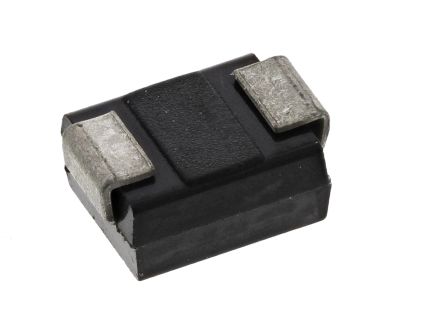

The MBRS140 is a surface-mount Schottky Power Rectifier with J-bend leads. This power rectifier is general usage and suitable for many different applications. Colour band denotes cathode end polarity.
1.5W Power dissipation
12°C/W Junction to lead thermal resistance

Show

MBRS140 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Number of Positions	2 Position
Forward Voltage	0.6 V
Thermal Resistance	12℃/W (RθJL)
Max Repetitive Reverse Voltage (Vrrm)	40V
Forward Current	1 A
Max Forward Surge Current (Ifsm)	40 A
Maximum Forward Voltage (Max)	600 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	4.75 mm
Size-Width	3.95 mm
Size-Height	2.45 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
