Description

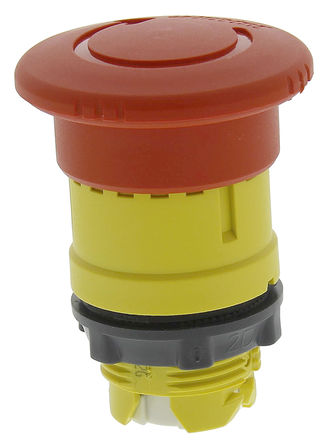

The ZB5AS844 is an Ø 40mm emergency stop pushbutton head for use with Harmony XB5 switches.
Red mushroom head unmarked
22mm mounting diameter
Turn to release
Trigger action and mechanical latching operator
Plastic bezel
Operating temperature range -25°C to +70°C
IP66 rated and conformance to IEC 60529 standard
NEMA 4X, NEMA 13 rated

Show

ZB5AS844 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Actuator Type	Button
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
	Show
Color	Red
Material	Plastic
Operating Temperature	25℃ ~ 70℃
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
