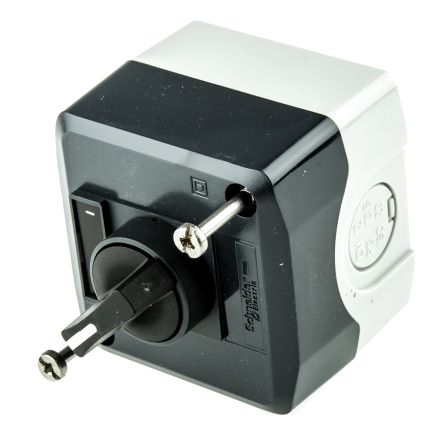

Image is for your reference only,please check specifications for details

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The XAL series plastic Control Station for control and signalling units Ø22mm from the Harmony® XB5 range. These control stations are suitable for start, stop, start-stop and emergency stop most common functions. The XALD series complete stations are fitted with 1, 2 or 3 Ø22mm control and signalling units from the Harmony® XB5 range. The XALK series complete stations for emergency stop function (1 mushroom head pushbutton). It is designed for industry and the service sector, this range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
IP65, NEMA 4 Protection rating
Protected LED illuminated lens units
Low-load electrical contact
Screw clamp connection, pins for printed circuit

Show

XALD134 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	Plastic
Contacts Type	SPST-NO
Number of Positions	2 Position
	Show
Size-Length	68 mm
Size-Width	68 mm
Material	Plastic
Housing Material	Plastic
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2014/06/16
