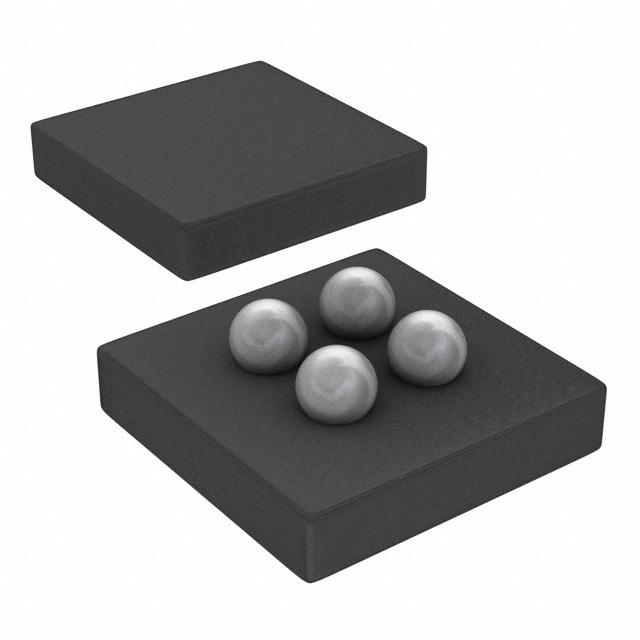

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The device has been designed to deliver the lowest on resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra low profile.
- Ultra Low Qg and Qgd
- Small Footprint 1mm × 1mm
- Low Profile 0.62mm Height
- Pb Free
- Gate ESD Protection – 3kV
- RoHS Compliant
- Halogen Free
- APPLICATIONS
- Battery Management
- Load Switch
- Battery Protection
CSD23201W10 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | UFBGA-4 |
| Number of Positions | 4 Position |
| Drain to Source Resistance (on) (Rds) | 0.066 Ω |
| Polarity | P-Channel |
| Power Dissipation | 1 W |
| Threshold Voltage | 600 mV |
| Drain to Source Voltage (Vds) | 12 V |
| Continuous Drain Current (Ids) | 1.10 A |
| Rise Time | 19 ns |
| Input Capacitance (Ciss) | 325pF @6V(Vds) |
| Input Power (Max) | 1 W |
| Fall Time | 29 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1W (Ta) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
