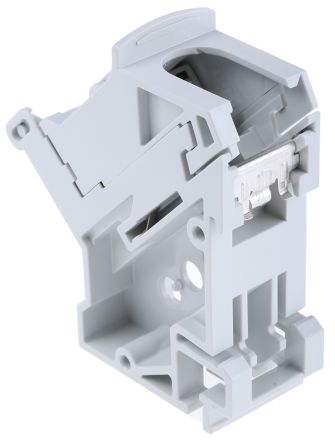

Image is for your reference only,please check specifications for details
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **VARIOSUB RJ45 Patch Panel**
- Professional Phoenix Contact DIN rail patch panels desined for Cat5e or Cat6
1658118 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 8 Contact |
| Wire Gauge | 22AWG ~ 24AWG |
| Insulation Resistance | 500 MΩ |
| Number of Rows | 1 Row |
| Number of Positions | 8 Position |
| Number of Mating Cycles | 750 Cycle |
| Contact Current Rating | 1 A |
| Current Rating (Max) | 1 A |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Voltage Rating (Max) | 50 V |
| Voltage Rating | 50 V |
| Show | |
| Size-Length | 81.41 mm |
| Size-Height | 81.4 mm |
| Housing Color | Gray |
| Color | Gray |
| Contact Material | Copper Alloy |
| Operating Temperature | -10℃ ~ 60℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694030 |
| ECCN Code | EAR99 |
