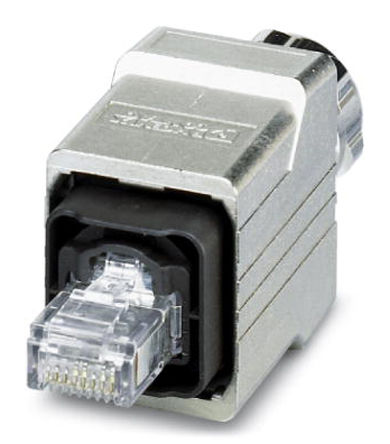

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1405141 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	4 Contact
Wire Gauge	22AWG ~ 26AWG
Contact Plating	Gold
Current Rating	1.75 A
Current Rating (Max)	1.75 A
Voltage Rating (Max)	50 V
Maximum Contact Resistance (Max)	5 mΩ
	Show
Size-Length	68.80 mm
Size-Width	22 mm
Size-Height	30 mm
Housing Color	Silver
Color	Transparent
Contact Material	Copper Alloy
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536694030
ECCN Code	EAR99
