Description

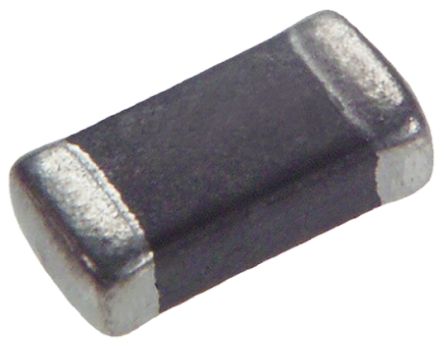

- The LQM2HPN2R2MG0L is a surface-mount high frequency Multilayer Inductor with magnetic shield of ferrite core. It offers 40MHz minimum self-resonance frequency and 1MHz inductance test frequency.
- -55 to 125°C Operating temperature range (self-temperature rise is not included)
LQM2HPN2R2MG0L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 1008 |
| Current Rating | 1.3 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 2.2 µH |
| Self Resonant Frequency | 40 MHz |
| Part Family | LQM |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤100 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±20 % |
| Resistance (DC Max) | 0.1 Ω |
| Show | |
| Size-Length | 2.5 mm |
| Size-Width | 2 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 3000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
