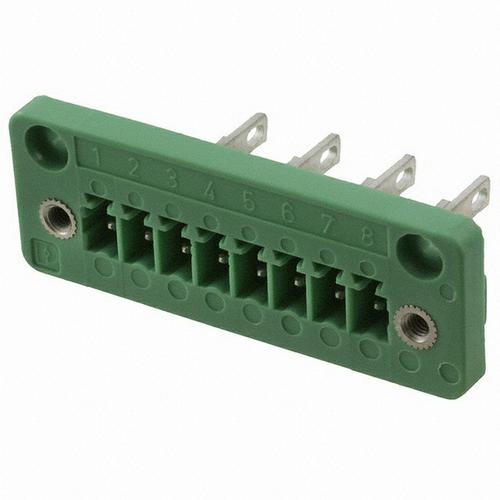

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Conn Shrouded Header HDR 8 POS 3.81mm Solder Lug ST Panel Mount
1827596 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel, Solder |
| Pin Pitch | 3.81 mm |
| Number of Contacts | 8 Contact |
| Current Rating | 8 A |
| Number of Rows | 1 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 8 Position |
| Mounting Angle | 180 ° |
| Current Rating (Max) | 8 A |
| Voltage Rating (Max) | 160 V |
| Voltage Rating | 320 V |
| Show | |
| Size-Length | 44.9 mm |
| Size-Height | 16.2 mm |
| Housing Color | Green |
| Color | Green |
| Contact Material | Tin |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694040 |
| ECCN Code | EAR99 |
