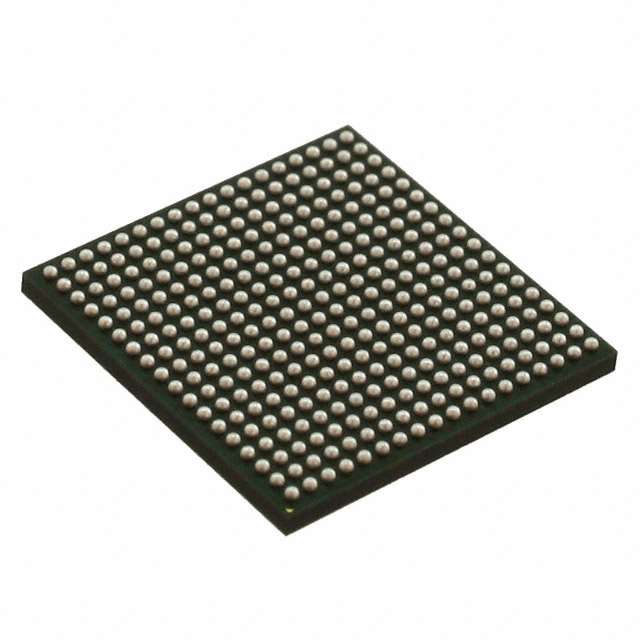

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Sitara AM335x series Sitara™ Microprocessor based on the ARM Cortex-A8 processor, is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS). Linux® and Android™ are available free of charge from TI. The microprocessor unit (MPU) subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGX™ graphics accelerator subsystem provides 3D graphics acceleration to support display and gaming effects. The PRU-ICSS is separate from the ARM core, allowing independent operation and clocking for greater efficiency and flexibility. The PRU-ICSS enables additional peripheral interfaces and real-time protocols such as EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos and others.
- Up to 1GHz Sitara™ ARM® Cortex® -A8 32-Bit RISC processor
- 64kB General-purpose on-chip memory controller (OCMC) RAM
- External memory interfaces (EMIF)- General-purpose memory controller (GPMC)
- Error locator module (ELM)
- Programmable real-time unit subsystem and industrial communication subsystem (PRU-ICSS)
- Five ADPLLs to generate system clocks
- Two non-switchable power domains (Real-time clock (RTC), wake-up logic (wake-up))
- Real-time date (day-month-year-day of week) and time (hours-minutes-seconds) information
- Up to two USB 2.0 high-speed OTG ports with integrated PHY
- Up to two controller-area network (CAN) ports
- Programmable high-quality image anti-aliasing
- Fully virtualized memory addressing for OS operation in an unified memory architecture
- LCD controller
- 12-bit successive approximation register (SAR) ADC
- Up to Three enhanced high-resolution PWM modules (eHRPWMs)
- Two programmable real-time units (PRUs)
- 12kB Shared RAM with single-error detection (parity)
- Peripherals inside the PRU-ICSS
- Power, reset and clock management (PRCM) module
- Device identification
AM3352ZCZD72 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 324 Pin |
| Case/Package | LFBGA-324 |
| Frequency | 720 MHz |
| Supply Voltage (DC) | 1.71V (min) |
| Number of Positions | 324 Position |
| Clock Speed | 720 MHz |
| Number of Bits | 32 Bit |
| Operating Temperature (Max) | 90 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 1.89 V |
| Supply Voltage (Min) | 1.71 V |
| Show | |
| Size-Height | 0.96 mm |
| Operating Temperature | -40℃ ~ 90℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
| HK STC License | NLR |
