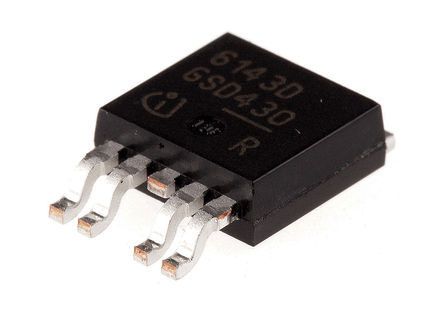

BTS6143DAUMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC843044
Category:
Power Distribution
Package:
TO-252-5
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 8A 0.0095Ω Automotive 5Pin(4+Tab) TO-252 T/R
Stock Locations:
Availability:
281 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.68

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS6143D is a high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. It is placed between the supply and load in order to control the application.
Short-circuit protection with latch
Overload protection
Current limitation
Thermal shutdown with restart
Overvoltage protection
Loss of ground protection
Loss of Vbb protection
Very low stand by current
Fast demagnetizing of inductive loads
Electrostatic discharge (ESD) protection
Optimized static electromagnetic compatibility(EMC)
12 or 24V capable
Single channel

Show

BTS6143DAUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Number of Outputs	1 Output
Input Voltage (DC)	38.0 V
Output Current	8 A
Number of Positions	5 Position
Power Dissipation	59 W
Output Current (Min)	8 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	59000 mW
Input Voltage	38 V
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
