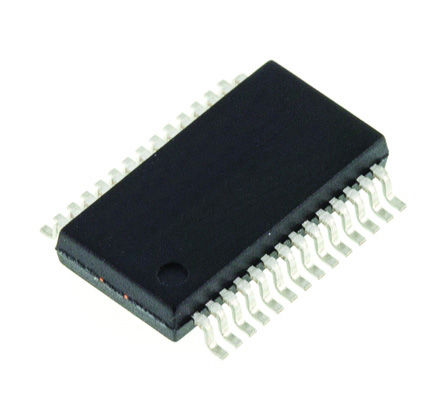

Image is for your reference only,please check specifications for details

PCM1716E - TI
Manufacturer:
TI
ManyChip's Part#:
MC44137763
Category:
Digital to Analog, DAC IC
Package:
SSOP-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PCM1716E Digital to Analog Converter, 24Bit, 96KSPS, Serial, 4.5V to 5.5V, SSOP, 28Pins
Stock Locations:
Availability:
1,366 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.37

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM1716E is a 106dB SNR Stereo audio Digital to Analogue Converter designed for mid to high grade digital audio applications which achieve 96kHz sampling rates with 24-bit audio data. The PCM1716 uses a newly developed, enhanced multi-level delta-sigma modulator architecture that improves audio dynamic performance and reduces jitter sensitivity in actual applications. The internal digital filter operates at 8x over sampling at a 96kHz sampling rate, with two kinds of roll-off performances that can be selected: sharp roll-off or slow roll-off as required for specific applications.
Enhanced multi-level Delta-Sigma converter
16 to 96kHz Sampling frequency
Digital de-emphasis
L/R Independent digital attenuation
Green product and no Sb/Br
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

PCM1716E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Number of Outputs	2 Output
Supply Current	45.0 mA
Number of Channels	2 Channel
Number of Positions	28 Position
Number of Bits	24 Bit
Power Dissipation	0.225 W
Sample Rate	96 ksps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	4.5V ~ 5.5V
	Show
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
