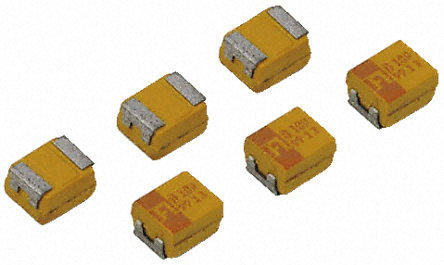

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AVX TPS series capacitors are low ESR, robust Mn02 solid electrolyte polarized tantalum chip capacitors. The capacitance value ranges from 0.15µF to 1500µF.
EIA 0805, 1206, 1210, 2312, 2917, 2924 case sizes available
Rated voltage range of 2.5VDC to 50VDC
Available in ±10% and ±20% tolerance
Operating temperature range of -55°C to 125°C
Meets 55/125/56 (IEC 68-2) standard

Show

TPSD336K020R0200 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	7343
Case/Package	2917
Voltage Rating (DC)	20 V
Operating Voltage	20 VDC
Capacitance	33 µF
Equivalent Series Resistance (ESR)	200 mΩ
Capacitance Tolerance	±10 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	20 V
	Show
Size-Length	7.3 mm
Size-Width	4.3 mm
Size-Height	2.9 mm
Dielectric Material	Tantalum
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
