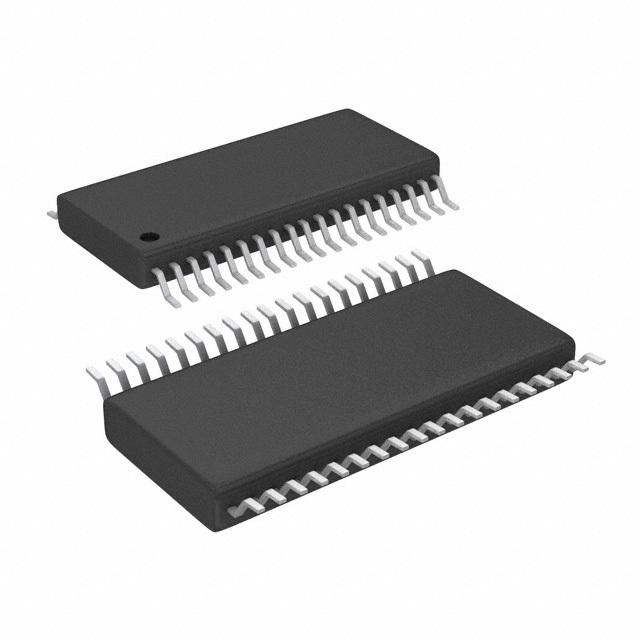

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The bq20z80 SBS-compliant gas gauge IC, incorporating patented Impedance Track technology, is designed for battery-pack or in-system installation. The bq20z80 measures and maintains an accurate record of available charge in Li-ion or Li-polymer batteries using its integrated high-performance analog peripherals. The bq20z80 monitors capacity change, battery impedance, open-circuit voltage, and other critical parameters of the battery pack, and reports the information to the system host controller over a serial-communication bus. It is designed to work with the bq29312A analog front-end (AFE) protection IC to maximize functionality and safety, and minimize component count and cost in smart battery circuits.
- FEATURES
- • Patented Impedance Track™ Technology
- Accurately Measures Available Charge in Li-Ion and Li-Polymer Batteries
- • Better than 1% Error Over Lifetime of the Battery
- • Instant Accuracy – No Learning Cycle Required
- • Supports the Smart Battery Specification SBS V1.1
- • Works With the TI bq29312A Analog
- Front-End (AFE) Protection IC to Provide
- Complete Pack Electronics Solution
- • Full Array of Programmable Voltage, Current, and Temperature Protection Features
- • Integrated Time Base Removes Need for External Crystal with Optional Crystal Input
- • Electronics for 7.2-V, 10.8-V or 14.4-V Battery Packs With Few External Components
- • Based on a Powerful Low-Power RISC CPU Core With High-Performance Peripherals
- • Integrated Field Programmable FLASH Memory Eliminates the Need for External Configuration Memory
- • Measures Charge Flow Using a High-Resolution, 16-Bit Integrating Delta-Sigma Converter
- – Better Than 0.65-nVh of Resolution
- – Self-Calibrating
- – Offset Error Less Than 1-µV
- • Uses 16-Bit Delta-Sigma Converter for Accurate Voltage and Temperature Measurements
- • Extensive Data Reporting Options For Improved System Interaction
- • Optional Pulse Charging Feature for Improved Charge Times
- • Drives 3-, 4- or 5-Segment LED Display for Remaining Capacity Indication
- APPLICATIONS
- • 38-Pin TSSOP (DBT)
- • Notebook PCs
- • Medical and Test Equipment
- • Portable Instrumentation
BQ20Z80DBT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 38 Pin |
| Case/Package | TSSOP-38 |
| Supply Voltage (DC) | 3.60V (max) |
| Output Voltage | 0.4 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Show | |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
