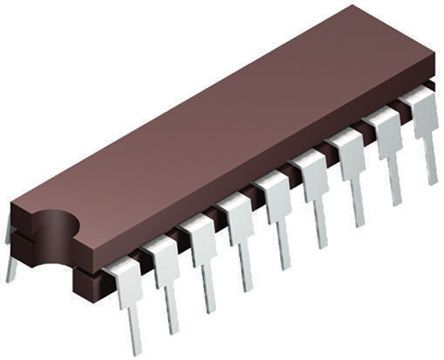

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The UC1637 is a pulse width modulator circuit intended to be used for a variety of PWM motor drive and amplifier applications requiring either uni-directional or bi-directional drive circuits. When used to replace conventional drivers, this circuit can increase efficiency and reduce component costs for many applications. All necessary circuitry is included to generate an analog error signal and modulate two bi-directional pulse train outputs in proportion to the error signal magnitude and polarity.
- FEATURES
- • Single or Dual Supply Operation
- • ±2.5V to ±20V Input Supply Range
- • ±5% Initial Oscillator Accuracy; ±10% Over Temperature
- • Pulse-by-Pulse Current Limiting
- • Under-Voltage Lockout
- • Shutdown Input with Temperature Compensated 2.5V Threshold
- • Uncommitted PWM Comparators for Design Flexibility
- • Dual 100mA, Source/Sink Output Drivers
UC1637J Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 18 Pin |
| Case/Package | CDIP |
| Power Dissipation | 1000 mW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1000 mW |
| Show | |
| Size-Length | 24.38 mm |
| Size-Width | 7.87 mm |
| Size-Height | 3.56 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
