2SC5706 Sanyo Semicon Device - BJTs

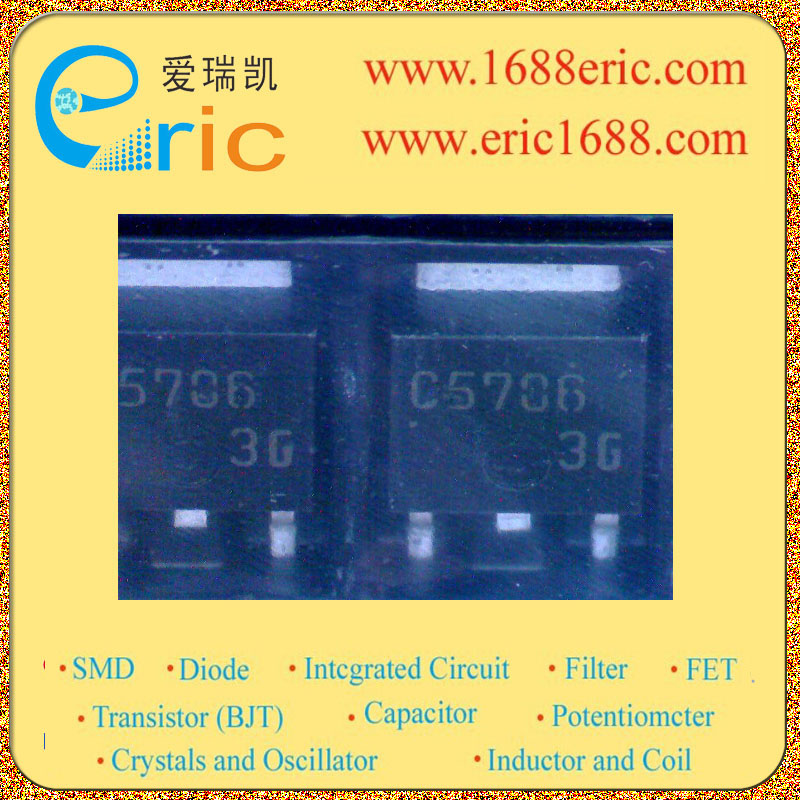

Image is for your reference only,please check specifications for details

2SC5706 - Sanyo Semicon Device
Manufacturer:
Sanyo Semicon Device
ManyChip's Part#:
MC235486737
Category:
BJTs
Package:
TO-252
Datasheet:
Datasheet 3D Model
Description:
NPN эпитаксиальные планарные кремниевые транзисторы для сильноточных переключающих применений
Stock Locations:
Availability:
292 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

NPN эпитаксиальные планарные кремниевые транзисторы для высокотоковых переключающих применений. Применения: • DC-DC преобразователи, драйверы реле, драйверы ламп, драйверы двигателей, стробоскопы. Особенности: • Применение процессов FBET, MBIT. • Большая токовая нагрузка. • Низкое напряжение насыщения коллектор-эмиттер. • Высокоскоростное переключение. • Высокая допустимая рассеиваемая мощность.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	TO-252
集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO)	80V
集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO)	50V
集电极连续输出电流ICCollector Current(IC)	5A
截止频率fTTranstion Frequency(fT)	400MHz
直流电流增益hFEDC Current Gain(hFE)	200~560
管压降VCE（sat）Collector-Emitter Saturation Voltage	90mV
耗散功率PcPower Dissipation	800mW/0.8W
规格书PDF	__
	Show
Product Lifecycle Status	Obsolete
