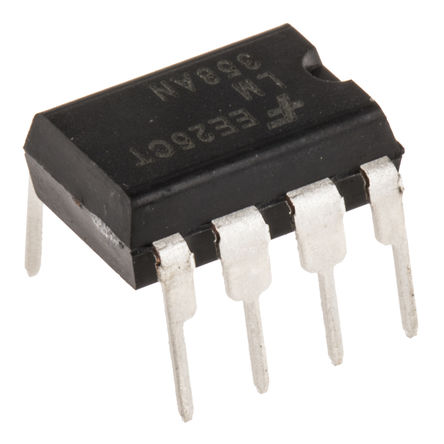

Image is for your reference only,please check specifications for details

LM358AN - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7339261
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR LM358AN Operational Amplifier, Dual, 2 Amplifier, 3V to 32V, ± 1.5V to ± 16V, DIP, 8Pins
Stock Locations:
Availability:
2,672 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM358AN is a two independent, high gain, internally frequency compensated Operational Amplifier IC, designed specifically to operate from a single power supply over a wide range of voltage. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Internally Frequency Compensated for Unity Gain
100dB Large DC Voltage Gain
Input Common-mode Voltage Range Includes Ground
0 to VCC-1.5VDC Large Output Voltage Swing
Power Drain Suitable for Battery Operation

Show

LM358AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	32.0V (max)
Output Current	30mA @15V
Supply Current	800 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	65 dB
Slew Rate	600 mV/μs
Input Offset Voltage	2 mV
Input Bias Current	45 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Minimum CMRR Range	65 dB
Supply Voltage	3.30 VDC
Supply Voltage (Max)	32V ~ 36V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.6 mm
Size-Width	6.4 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
