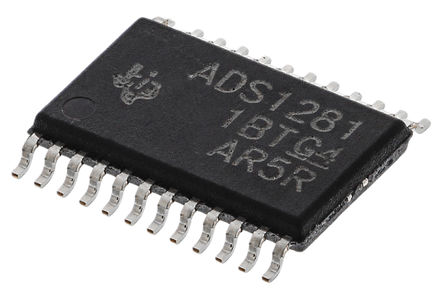

Image is for your reference only,please check specifications for details
- ADS1281IPW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC10487666
-
Category:Analog to Digital, ADC IC
-
Package:TSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter High Resolution 24Bit Analog-to Digital Converter Single Channel Single ADC Delta-Sigma 4KSPS 31Bit Serial 24Pin TSSOP Tube
-
Stock Locations:
-
Availability:282 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 57.45
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS1281IPW is an ultra high resolution delta sigma Analog-to-digital (A/D) Converter for seismic and energy exploration. The ADS1281 is designed for the demanding needs of energy exploration and seismic monitoring environments. The single-chip design promotes board area savings for improvements in high-density applications. The converter uses a fourth-order, inherently stable, delta-sigma modulator that provides outstanding noise and linearity performance. The modulator is used either in conjunction with the on-chip digital filter or can be bypassed for use with post-processing filters. The digital filter consists of sinc and finite impulse response (FIR) low-pass stages followed by an infinite impulse response (IIR) high-pass filter (HPF) stage. The FIR low-pass stage provides both linear and minimum phase response. The HPF features an adjustable corner frequency. On-chip gain and offset scaling registers support system calibration.
- High resolution
- High accuracy
- Inherently stable modulator with fast responding over-range detection
- Flexible digital filter
- Filter bypass option
- Low power consumption
- Calibration engine for offset and
- Gain correction
- SYNC Input
- Green product and no Sb/Br
- This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ADS1281IPW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Supply Voltage (DC) | 1.80V (min) |
| Supply Current | 2.00 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 24 Position |
| Number of Bits | 31 Bit |
| Power Dissipation | 12 mW |
| Sample Rate | 4 ksps |
| Power Consumption | 12 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 18 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage (Max) | 3.3 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 7.8 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2017/07/07 |
| ECCN Code | EAR99 |
