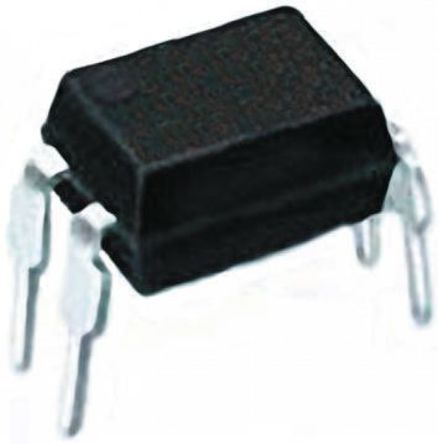

Image is for your reference only,please check specifications for details

KB814 - Kingbright
Manufacturer:
Kingbright
ManyChip's Part#:
MC14846903
Category:
Optocoupler, Optoisolator
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
KINGBRIGHT KB814 Optocoupler, Transistor Output, 1Channel, DIP, 4Pins, 50mA, 5kV, 20%
Stock Locations:
Availability:
771 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KB814 is a 1-channel 4-pin AC input Optically Coupled Isolator/Photocoupler contains two GaAs LED and a NPN silicon phototransistor. It provides high isolation voltage between input and output. It has lead pitch of 2.54mm.
Avoid removing the residual flux with Freon-based and chlorine-based cleaning solvent. Be aware that power is suddenly into the component any surge current may cause damage happen.

Show

KB814 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP
Output Voltage	35.0 V
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.2 V
Input Current	50.0 mA
Power Dissipation	200 mW
Rise Time	4 µs
Isolation Voltage	5 kV
Input Current (Min)	50 mA
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Fall Time	3 µs
Fall Time (Max)	18 µs
Fall Time (Max)	18 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-30 ℃
Power Dissipation (Max)	200 mW
	Show
Operating Temperature	-30℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
