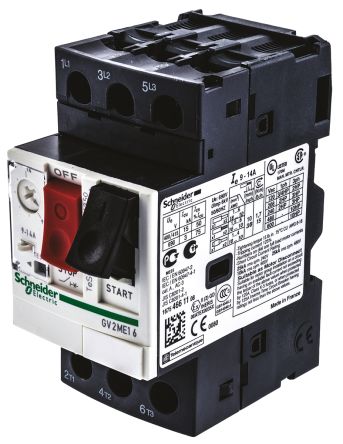

GV2ME16 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC15122400
Category:
Motors, Drive
Datasheet:
Datasheet 3D Model
Description:
Electric TeSys 9 - 14A 3P Motor Protection Circuit Breaker; 3kA; 690V
Stock Locations:
Availability:
184 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 107.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The GV2ME16 from Schneider is a TeSys three pole thermal magnetic circuit breaker with screw clamp terminals. This circuit breaker is approved by EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1, NF C 63-120, NF C 63-650, NF C 79-130, UL 508, VDE 0113, VDE 0660 and CSA C22.2 standards. The GV2ME16 is DIN rail mountable with vertical and horizontal mounting positions.
Breaking capacity of 3KA at 690VAC (50/60Hz) conforming to IEC 60947-2
Thermal protection adjustment range from 9A to 14A
Magnetic tripping current is 170A
Rated operational voltage of 690VAC (50/60Hz) conforming to IEC 60947-2
Conventional free air thermal current of 14A conforming to IEC 60947-4-1
Power dissipation per pole is 2.5W
IP20 degree of protection conforming to IEC 60529
IK04 degree of protection
Operating ambient air temperature range from -20°C to 60°C
Pushbutton control

Show

GV2ME16 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Voltage Rating (AC)	690 V
Operating Voltage	230VAC ~ 690VAC
Current Rating	14 A
Operating Temperature (Max)	60 ℃
Voltage Rating	690 V
Supply Voltage	600 VAC
Supply Voltage (Max)	600 VAC
Supply Voltage (Min)	120 VAC
	Show
Size-Length	89 mm
Size-Height	89.0 mm
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
