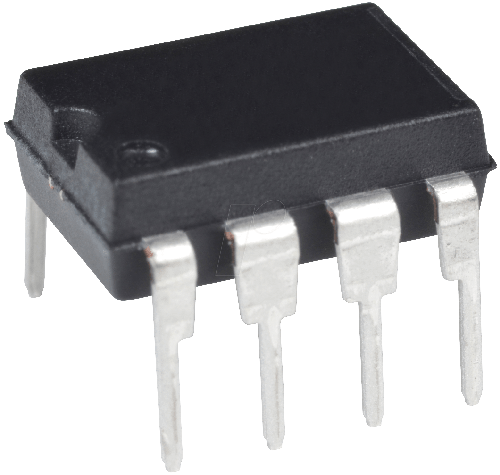

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The DS1620 Digital Thermometer and Thermostat provides 9-bit temperature readings which indicate the temperature of the device. With three thermal alarm outputs, the DS1620 can also act as a thermostat. THIGH is driven high if the DS1620"s temperature is greater than or equal to a user-defined temperature TH. TLOW is driven high if the DS1620"s temperature is less than or equal to a user-defined temperature TL. TCOM is driven high when the temperature exceeds TH and stays high until the temperature falls below that of TL.
User-defined temperature settings are stored in nonvolatile memory, so parts can be programmed prior to insertion in a system, as well as used in standalone applications without a CPU. Temperature settings and temperature readings are all communicated to/from the DS1620 over a simple 3-wire interface.

Show

DS1620 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	5.00 V
Output Voltage	2.40 V
Supply Current	1 mA
Load Capacitance	50.0 pF
Number of Bits	12 Bit
Input Capacitance	5.00 pF
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±2℃ (Max)
Supply Voltage	2.7V ~ 5.5V
	Show
Size-Length	9.91 mm
Size-Width	7.87 mm
Size-Height	4.45 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2013/06/20
