Description

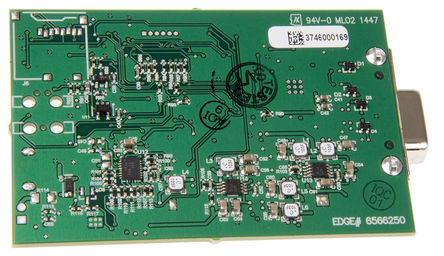

The AFE4490SPO2EVM evaluation module is intended for evaluating AFE4490 device. The AFE4490 is a fully integrated AFE ideally suited for pulse oximeter applications and consist of low noise receive channel, the LED transmit section and diagnostics for sensor and LED fault detection. The AFE4490 is a very highly configurable timing controller enabling the user to have complete control of the device timing characteristics. The device also has an integrated oscillator working off an external crystal to ease clocking requirements and provide a low jitter clock to the AFE4490. The device communicates to an external host processor using the serial peripheral interface (SPI). The purpose of the AFE4490SPO2EVM is to expedite evaluation and system development activities related to AFE4490 device.
DB9 pulse oximeter sensor cable support
Evaluation and live SpO2/heart rate modes of operation
Acquire data at up to 1300Hz in evaluation mode
USB based power and PC application connectivity
Access to all AFE4490 registers via an easy to use GUI
Flexible pulse sequencing and timing control
Receive channel with high dynamic range
Integrated fault diagnostics
Integrated digital ambient estimation and subtraction
Analog ambient cancellation scheme with selectable 1µA to 10µA ambient current
ESD sensitive device, take proper precaution while handling the device.
This evaluation module is not a finished electrical equipment and not intended for consumer use.

Show

AFE4490SPO2EVM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Bits	22 Bit
	Show
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
