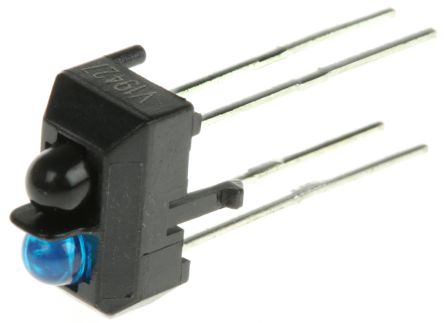

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TCRT5000L is a Reflective Optical Sensor which includes an infrared emitter and phototransistor in a leaded package which blocks visible light.
- Phototransistor Detector
- 2.5mm Peak Operating Distance
- 1mA Typical Output Current Under Test
- Daylight Blocking Filter
- 950nm Emitter Wavelength
- Lead (Pb)-free Soldering Released
TCRT5000L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | PCB Mount |
| Number of Channels | 2 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.25 V |
| Wavelength | 940 nm |
| Power Dissipation | 0.2 W |
| Breakdown Voltage (Collector to Emitter) | 70 V |
| Forward Current | 60 mA |
| Reverse Breakdown Voltage | 5 V |
| Forward Current (Max) | 60 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 5.8 mm |
| Size-Height | 8.5 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
