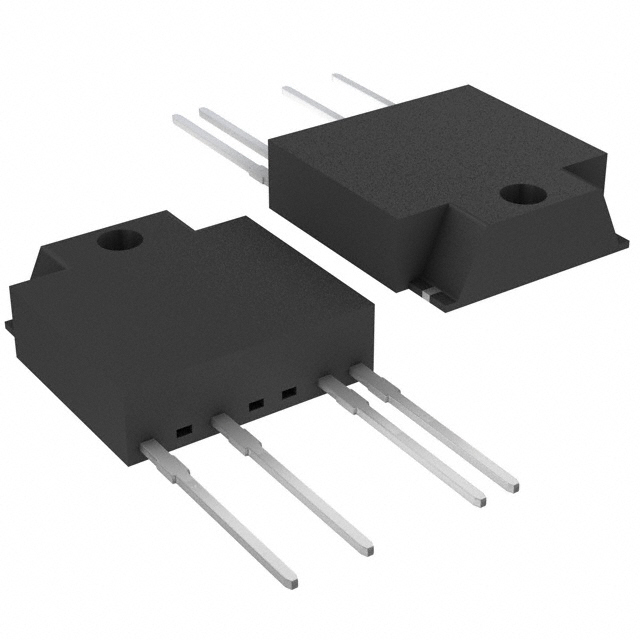

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ■Features
- 1\. High radiation resin mold package
- 2\. RMS ON-state current
- IT: 8 Arms at TC<= 80˚C (With heat sink)
- 3\. Built-in zero-cross circuit (S102S02/S202S02)
- 4\. High repetitive peak OFF-state voltage
- S102S01/S102S02 VDRM: MIN. 400V
- S202S01/S202S02 VDRM: MIN. 600V
- 5\. Isolation voltage between input and output (Viso : 4 000Vrms)
S202S01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Output Current | ≤8.00 A |
| Contacts Type | SPST-NO |
| Load Current | 8 A |
| Input Voltage (Max) | 1.4 V |
| Output Voltage (Max) | 600 V |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Input Voltage | 1.2 VDC |
| Show | |
| Size-Length | 18.5 mm |
| Size-Width | 5.50 mm |
| Size-Height | 24.6 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
